5035 SD PC Sprinkler



Flow Rates (lph)

720 to 2100

Working Pressure (kg/cm²)

2.5 to 5.0

Wetted Diameter (m)

26.0 to 34.0

Features & Benefits

Unique Hammer & SD Plate
Unique hammer with SD (super-diffuser) plate design for uniform distribution

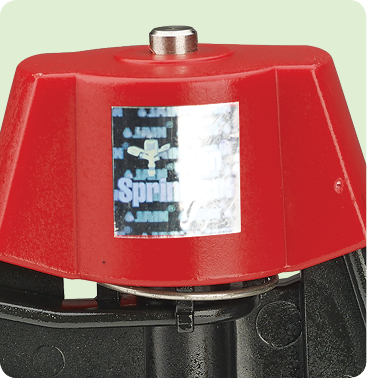

Red Cap for Protection of SS Spring
Plastic protection cap protects the spring from sand gives longer life to sprinkler
Finger Tip Adjustment
User friendly, Stainless Steel fingertip adjustment to part circle mechanism
Heavy Duty Retraction Spring
Stainless steel retraction spring maintains uniform rotation speed
Innovative Bayonet Nozzles
Integrated stream straightening vanes in nozzles for maximum throw
Stainless Steel Spindle, Fulcrum Pin
Stainless steel spindle, fulcrum pin for improving life of sprinkler with anti self rotation arrangement

Applications

  • Suitable for field crops like pulses, oil seeds, vegetables, sugarcane, cotton, cereals, tea, coffee and fodder crops
  • Used for irrigation of edges in various field crops
